DIN 605 - Flat Countersunk Head with Long Square Neck Bolts-Carriage Bolts with Hexagon Nut Standard Dimensions, Technical Data and Size Chart Data Table
Click the Button to Download DIN 605 - Flat Countersunk Head with Long Square Neck Bolts-Carriage Bolts with Hexagon Nut Standard Dimensions, Technical Data and Size Chart Data Table in PDF Format
- Steel: 4.8, 5.6, 8.8, 10.9
- Stainless: A2, A4
Equivalent Standards:
- CSN 021327
- PN 82402
- UNI 6104
Available Finish:
- Black
- Bright Zinc
- Self
- Hot Dip Galvanized

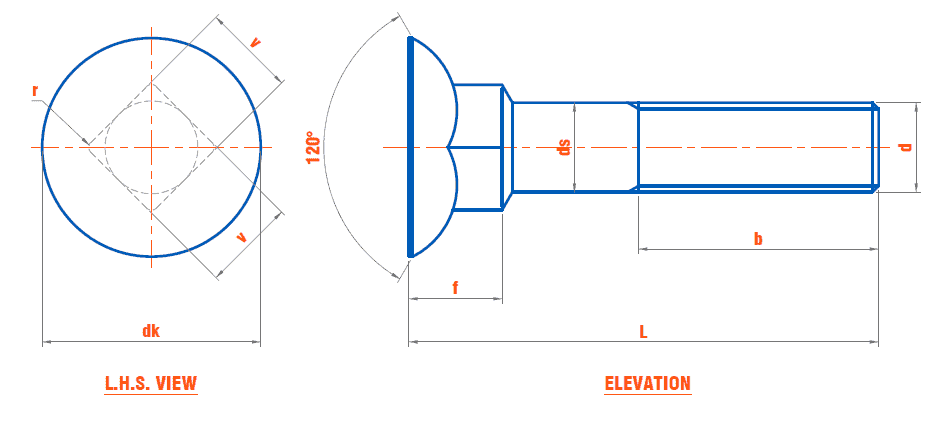

Terminology and Measurements
- b – length of the thread (at least)
- l – length of the bolt
- d – the nominal diameter of the thread
- r – radius
- ds – diameter of the screw shank
- dk – head diameter
- f – height squared
- v – width of the square
| Thread d | P | b | dk | ds | f | r | v | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l-125mm | 125| l>200mm | max. | min. | max. | min. | max. | min. | max. | max. | min. | | ||
| M6 | 1 | 18 | 24 | - | 16.55 | 15.45 | 6 | 5.52 | 7.45 | 6.55 | 0.9 | 6.48 | 5.52 |
| M8 | 1.25 | 22 | 28 | 41 | 20.65 | 19.35 | 8 | 7.42 | 9.45 | 8.55 | 1.2 | 8.58 | 7.42 |
| M10 | 1.5 | 26 | 32 | 45 | 24.65 | 23.35 | 10 | 9.42 | 11.55 | 9.45 | 1.5 | 10.58 | 9.42 |
| Thread d | l | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 100 |
| M6 | Wight kg/1000pcs | 8.8 | 9.8 | 10.8 | 11.9 | 12.9 | 13.9 | 14.9 | - | - | - | - | - |
| M8 | 15.4 | 17.4 | 19.3 | 21.3 | 23.2 | 25.2 | 27.1 | 29.1 | 31 | 34.9 | - | - | |
| M10 | - | - | 30.6 | 33.6 | 36.5 | 39.4 | 42.4 | 45.3 | 48.2 | 54.1 | 59.9 | 65.7 |
