Choosing solar power is one of the most effective steps toward clean, sustainable, renewable energy generation. However, the long-term reliability of any photovoltaic (PV) installation—whether ground-mounted, rooftop, or elevated structural racking—depends on the strength and durability of its fastening hardware.
Intact360 Industries manufactures a comprehensive selection of Solar Panel Fasteners, including precision-engineered Nuts, Bolts, Washers & Screws. Designed to serve as the structural foundation of PV systems, our hardware is built to endure harsh weather conditions, seismic forces, and high thermal movement without losing clamping pressure or requiring costly maintenance.

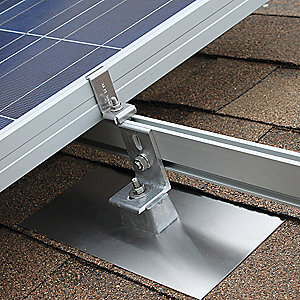

Solar fasteners are the heavy-duty pins, clasps, screws, nuts, and bolts that hold the entire solar structure together. They connect PV modules to aluminum mounting rails, secure racking brackets to roof rafters or ground foundations, and provide structural integrity against wind uplift and environmental vibration.
Four Major Categories of Solar Fastening Tools
Solar panel hardware is categorized into four main fastening families, each engineered for specific structural roles across the PV array:
1. Specialized Solar Screws
Screws hold internal components, module clamps, and roof attachment brackets in place:
- Lag Screws: Heavy-duty wood screws designed to anchor solar racking brackets deeply into timber roof rafters.
- Self-Drilling Screws: Equipped with drill points and EPDM bonded sealing washers to penetrate sheet metal roofs while preventing leaks.
- Sheet Metal & Hex Screws: Used for securing purlins, junction boxes, and structural framework.
2. Load-Distributing & Locking Washers
Washers are essential for preserving joint clamping force and protecting solar panel frames:
- Tooth Lock & Split Washers: Provide active spring tension and biting action to prevent vibrational loosening under wind loads.
- Sealing Washers (EPDM Backed): Create a durable watertight seal on rooftop screw penetrations.
- Flat & Belleville Spring Washers: Evenly distribute bolt clamping stress across aluminum rail surfaces.
3. High-Strength Solar Nuts & Bolts
Used in matched pairs, nuts and bolts attach the solar array to external support structures:
- T-Bolts (Hammer Head Bolts): Slide directly into aluminum solar rail channels and twist 90 degrees to lock firmly into slot walls.
- Serrated Flange Bolts & Nuts (DIN 6921 / DIN 6923): Integrated wide flange distributes loads without needing separate washers, while under-head serrations bite into metal surfaces to resist vibration.
- K-Lock Nuts & Standard Hex Nuts (DIN 934): Feature free-spinning external tooth washers for rapid hand or power tool assembly.
Must-Look Features Before Buying Solar Fasteners
When specifying nuts, bolts, washers, and screws for solar installations, evaluate the following key technical parameters to guarantee structural longevity:
- Durability & Strength: Hardware must maintain clamping pressure for over 25 years without suffering stress relaxation or atmospheric breakdown.
- Material Quality: For rooftop installations constantly exposed to severe weather, specify Stainless Steel A2-70 (SS 304) or A4-70 (SS 316). For economical ground-mounted structures, Grade 8.8 High Carbon Steel with a Hot Dip Galvanized (HDG) finish offers superior strength and long-term durability.
- Protective Coating: Coatings dictate joint lifespan! Zinc plating, HDG, and Zinc-Aluminum Flake (Geomet/Dacromet) prevent galvanic corrosion between steel fasteners and aluminum mounting rails.
- Cost-Effectiveness & Value: Premium fasteners lower lifetime maintenance costs by eliminating systemic joint failures and rework.
Technical Specifications & Material Grades
| Hardware Category | Fastener Types & Standards | Raw Material Options | Surface Finishes |
|---|---|---|---|
| Solar Bolts | DIN 6921 Flange Bolt, DIN 933 Hex Bolt, Rail T-Bolt | SS 304 (A2-70), SS 316 (A4-70), Carbon Steel 8.8 | HDG, Geomet, Dacromet, Passivated |
| Solar Nuts | DIN 6923 Serrated Flange Nut, DIN 934 Hex Nut, K-Lock Nut | Stainless Steel A2 / A4, High Carbon Steel Grade 8 | Hot Dip Galvanized, Zinc Electroplated |
| Solar Washers | Tooth Lock, EPDM Sealing, Split, Flat Washer | Stainless Steel 304 / 316, EPDM Rubber, Aluminum | Plain, Passivated, Galvanized |
| Solar Screws | DIN 912 Socket Head, Self-Drilling, Lag Screw | Mild Steel 4.8 / 5.8, Stainless Steel A2-70, SS 316 | Zinc Plated, HDG, EPDM Bonded |
Having accurate technical information allows engineering teams and solar installers to pick the ideal fasteners for every environment. Intact360 supplies factory-certified, pre-tested solar nuts, bolts, washers, and screws to ensure every solar array stands durable and secure over its full 25-year design life.
Order Certified Solar Nuts, Bolts, Washers & Screws
Get competitive factory-direct pricing for complete solar hardware sets, T-bolts, flange fasteners, EPDM washers, and self-drilling screws with material test reports.
Solar Panel Nuts, Bolts, Washers & Screws Technical FAQ
What are solar panel fasteners and why are they critical?
Which types of screws are used in solar PV mounting systems?
Why are specialized washers necessary for solar installations?
What combination of nuts and bolts works best for solar racking?
What key features should I look for before buying solar panel fasteners?
Are Intact360 solar nuts, bolts, washers, and screws certified?
Get Precision Solar Hardware Delivered Worldwide
Send your solar project bill of materials or technical requirements directly to our sales team for an immediate quotation.
