Plain washers are the most widely utilized category of washer hardware in modern engineering assemblies. Designed to fit between joint surfaces, plain washers provide a smooth bearing area that reduces friction, protects soft substrates, and evenly distributes tightening torque. As a premier plain washers manufacturer, exporter, and supplier, Intact360 Industries produces standard and customized plain washers engineered to perform reliably under high static loads, vibrational shock, and corrosive industrial exposures.
Plain washers are specified across 6 major technical categories: Flat Washers, Fender Washers, Torque Washers, Countersunk Finishing Washers, Shoulder Washers, and C-Shape Washers. Each design offers distinct mechanical features tailored for structural engineering, automotive chassis, electronic insulation, or fluid sealing.
- Flat Washers: Thin circular discs used with nuts to increase bolt bearing surface area and reduce clamping pressure.
- Fender Washers: Large outer diameter washers designed to spread clamping forces over thin sheet metal to prevent warping.
- Torque Washers: Four-pronged metal washers that bite into mating surfaces to anchor bolts against rotation and loosening.
- Countersunk Finishing Washers: Flush or decorative cup washers designed to cover embedded screw heads.
- Shoulder Washers: Flanged cylindrical sleeves used to insulate fasteners or shafts within electronic equipment.
- C-Shape Washers: Concave side-slot washers engineered to slide in and out of position on rotating shafts without joint disassembly.
Standard Flat Washers vs Fender Washers
Understanding the dimensional differences between standard flat washers and fender washers is essential for specifying joint hardware. Both feature a central hole for receiving bolts or screws, but their outer proportions dictate their mechanical role.

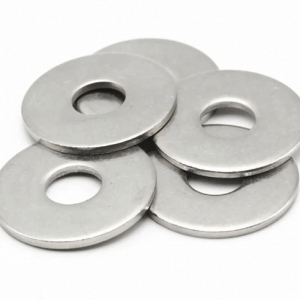

Flat Washers
A standard flat washer is a thin metal disc featuring proportional inner and outer diameters. Placed beneath nut faces or screw heads, flat washers increase the bearing surface area, distributing the clamping load to prevent the fastener from sinking into or crushing softer materials. Flat washers are widely used across home repair, manufacturing plants, and construction sites.
Fender Washers
A fender washer features a significantly larger outer diameter relative to its inner hole. Originally developed for automotive bodywork to attach fenders to sheet metal without chafing, fender washers distribute tightening forces across an enlarged surface area. This prevents thin sheet metal, plastic panels, or wood from tearing, bending, or breaking under high tension.
Specialized Plain Washer Styles & Applications
Beyond standard flat profiles, Intact360 manufactures specialized plain washers engineered for distinct structural, electrical, and maintenance functions:
1. Torque Washers (Anti-Rotation Prongs)
Torque washers feature four integrated prongs stamped along their outer or inner perimeter. When tightened, these prongs dig directly into mating wood or metal surfaces, anchoring the bolt in place. This prevents the bolt from spinning during assembly and eliminates loosening caused by ongoing operational vibration.
2. Countersunk Finishing Washers
Countersunk finishing washers (or cup washers) feature a smooth, recessed rim that accommodates countersunk screw heads. Positioned over embedded screws, they produce a flush, decorative finish that covers sharp hardware edges on furniture, cabinetry, doors, and exterior building panels.
3. Shoulder Washers (Insulating Bushings)
A shoulder washer consists of a cylindrical sleeve featuring an extended flange at one end. Manufactured from insulating metals (copper, brass, bronze) or non-metallic materials (fiber, polyurethane), shoulder washers isolate fasteners or rotating shafts within electronic equipment, providing an electrical ground connection while acting as a rotary shaft bearing.
4. C-Shape Washers (Slotted Open Washers)
Featuring a concave, side-opening "C" shape, C-washers are designed to slide laterally in and out of position on bolts or rotating shafts without fully removing mating hardware. Specified in gearboxes, cranks, and tight-tolerance machine assemblies, C-washers act as spacers, prevent water leakage, and absorb shock loading.
Technical Specifications & Standard Compliance
| Plain Washer Type | Standard Compliance | Material Options | Key Mechanical Purpose |
|---|---|---|---|
| Flat Washers | DIN 125 / ISO 7089 / ASME B18.22.1 | SS 304/316, Carbon Steel, MS, Aluminum | Evenly distributes bolt load and torque |
| Fender Washers | DIN 9021 / ISO 7093 | Stainless Steel, Mild Steel, Zinc Plated | Spreads pressure over thin sheet metal |
| Torque Washers | Manufacturer Standard / Custom Stamped | Hardened Steel, Stainless Steel | Anchors bolts using 4 surface prongs |
| Countersunk Washers | DIN 9055 / Custom Finishing | Brass, Bronze, Stainless Steel | Flush, decorative cover for screw heads |
| Shoulder Washers | Custom Electronic Specification | Copper, Brass, Polyurethane, Fiber | Insulates hardware & acts as shaft sleeve |
| C-Shape Washers | DIN 2520 / Custom Slotted | Bronze, Brass, Steel, Rubber | Lateral side-entry spacer for rotating shafts |
To maximize hardware longevity in harsh environments, Intact360 applies protective coatings including Hot Dip Galvanizing (HDG), Zinc Electroplating, Phosphating, Black Oxide, Cadmium, Nickel, Molykote dry film lubricants, and PTFE/Teflon fluoropolymer barrier coatings. Intact360 also stamps custom washer shapes, non-standard outer diameters, and specialized thickness profiles according to technical drawings.
Order High Quality Plain Washers Direct from Factory
Get factory-direct pricing for stainless steel flat washers, fender washers, torque washers, and custom stamped C-washers with complete material test certificates.
