DIN 580 Lifting Eye Bolts-Collar Eyebolts for Lifting Purposes Standard Dimensions, Technical Data and Size Chart Data Table
Click the Button to Download DIN 580 Lifting Eye Bolts-Collar Eyebolts for Lifting Purposes Standard Dimensions, Technical Data and Size Chart Data Table in PDF Format
- Steel: C 15 E
- Stainless: A2, A4
Equivalent Standards:
- CSN 021369
- PN 82472
- UNI 2947

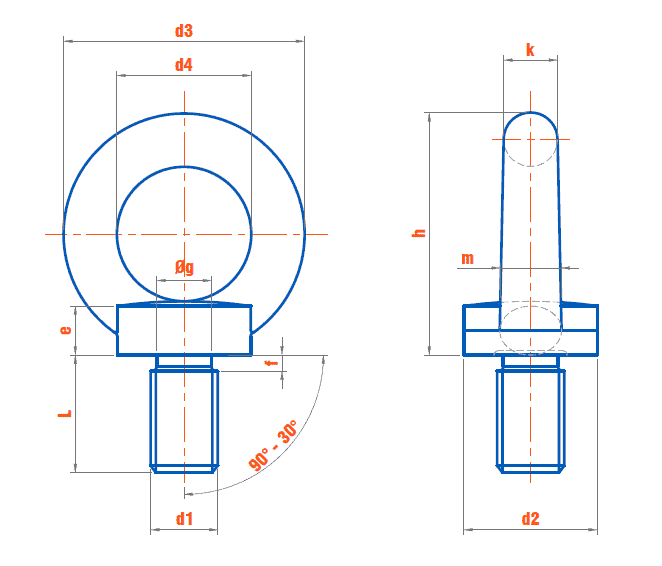

Terminology and Measurements
- l – length of the bolt
- d2 – head diameter
- h – height
- D4 – diameter of the eye
- D3 – the outer diameter of the eye
- E – Foot height screw
- k – width of the eye
- D1 – the nominal diameter of the thread
- F – undercut length
| Thread siz d1 | d2 | d3 | d4 | e | f | g (h13) | h | k | L ( ± 1 ) | m | r1 | r2 | r3 | Weight kg/pc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M8 | 20 | 36 | 20 | 6 | 2.5 | 6 | 36 | 8 | 13 | 10 | 4 | 1 | 1 | 0.06 |
| M10 | 25 | 45 | 25 | 8 | 3 | 7.7 | 45 | 10 | 17 | 12 | 4 | 1 | 1 | 0.11 |
| M12 | 30 | 54 | 30 | 10 | 3.5 | 9.4 | 53 | 12 | 20.5 | 14 | 6 | 2 | 1.2 | 0.18 |
| M16 | 35 | 63 | 35 | 12 | 4 | 13 | 62 | 14 | 27 | 16 | 6 | 2 | 1.2 | 0.28 |
| M20 | 40 | 72 | 40 | 14 | 5 | 16.4 | 71 | 16 | 30 | 19 | 8 | 2 | 1.6 | 0.45 |
| M24 | 50 | 90 | 50 | 18 | 6 | 19.6 | 90 | 20 | 36 | 24 | 12 | 2 | 2 | 0.74 |
| M30 | 65 | 108 | 60 | 22 | 7 | 25 | 109 | 24 | 45 | 28 | 15 | 3 | 2 | 1.66 |
| M36 | 75 | 126 | 70 | 26 | 8 | 30.3 | 128 | 28 | 54 | 32 | 18 | 3 | 2 | 2.65 |
| M42 | 85 | 144 | 80 | 30 | 6 | 35.6 | 147 | 32 | 63 | 38 | 20 | 3 | 2.5 | 4.03 |
| M48 | 100 | 166 | 90 | 35 | 10 | 41 | 168 | 38 | 68 | 46 | 22 | 4 | 2.5 | 6.38 |
| M56 | 110 | 184 | 100 | 38 | 11 | 48.3 | 187 | 42 | 78 | 50 | 25 | 4 | 3 | 8.8 |
| M64 | 120 | 206 | 110 | 42 | 12 | 55.7 | 208 | 48 | 90 | 58 | 25 | 4 | 3 | 12.4 |
| M72x6 | 150 | 260 | 140 | 50 | 12 | 63.7 | 260 | 60 | 100 | 72 | 35 | 4 | 3 | 23.3 |
| M80x6 | 170 | 296 | 160 | 55 | 12 | 71.7 | 298 | 68 | 112 | 80 | 35 | 4 | 3 | 34.2 |
| M100x6 | 190 | 330 | 180 | 60 | 12 | 91.7 | 330 | 75 | 130 | 88 | 40 | 4 | 3 | 49.1 |
