DIN 480 - Square Head Bolts With Collar And Tip Approach (Short Point with Rounded End) Standard Dimensions and Specifications
Click the Button to Download DIN 480 – Square Head Bolts With Collar And Tip Approach Standard Dimensions and Specifications in PDF Format
- Steel: 4.8, 5.8, 8.8, 10.9, 12.9
- Stainless: A2,A4

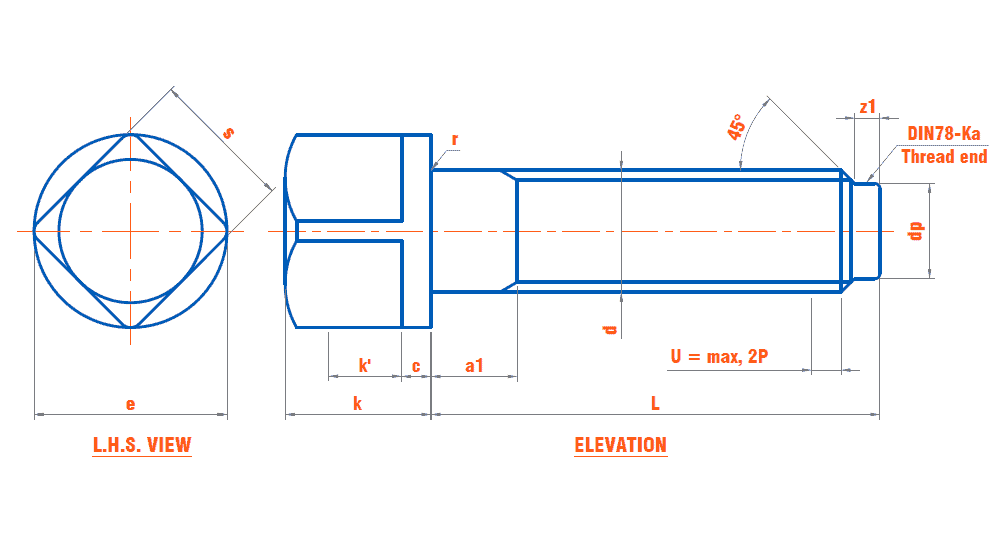

Terminology and Measurements
- d – The Nominal Diameter of the Thread
- l – Length of Bolt
- s – Size Hex Head Turnkey
- b – Length of the Thread
- k – Head Height
- e – The Diameter of the Circumscribed Circle
