DIN 835 Double End Metric Studs Standard Dimensions, Technical Data and Size Chart Data Table
Click the Button to Download DIN 835 Double End Metric Studs Standard Dimensions, Technical Data and Size Chart Data Table in PDF Format
- Steel: 5.8, 8.8, 10.9
- Stainless: A2, A4

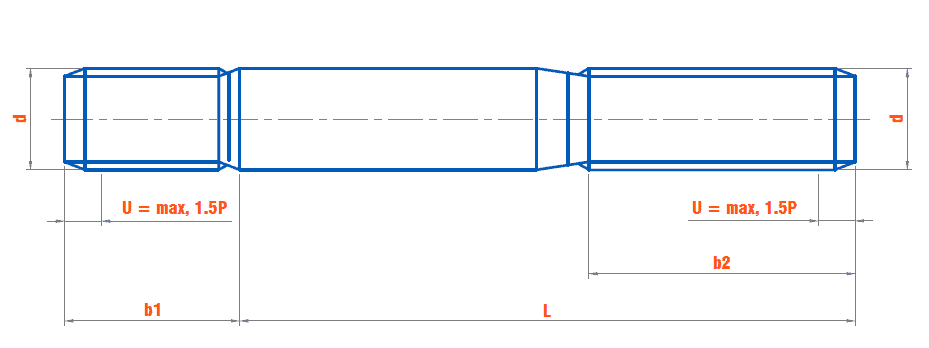

Terminology and Measurements
- l – length of the bolt
- d – the nominal diameter of the thread
- b1 – length of thread stud ends
- b2 – thread length nut end
| d | b1 | b2 |
|---|---|---|
| M 5 | 10 | 16 |
| M 6 | 12 | 18 |
| M 8 | 16 | 22 |
| M 10 | 20 | 26 |
| M 12 | 24 | 30 |
| M 16 | 32 | 38 |
| M 20 | 40 | 46 |
| M 24 | 48 | 54 |
