Washers are essential disc-shaped mechanical hardware components positioned beneath nut heads, bolt heads, or axle bearings. As an established industrial washers manufacturer, exporter, and global supplier in India, Intact360 Industries Pvt Ltd produces precision metal washers in diverse dimensions, thicknesses, and geometries tailored to heavy-duty industrial assemblies.
The primary mechanical purpose of an industrial metal washer is to distribute compressive clamping loads evenly across mating joint surfaces, relieve friction during rotational torquing, and prevent structural material galling. Additionally, specialized metal washers function as smooth bearing surfaces, liquid and gas seal gaskets, and vibration-resistant tensioning elements.
- Load Distribution: Spreads heavy bolt clamping force over a broader surface area, preventing damage to softer joined materials.
- Friction Mitigation: Minimizes surface friction under turning nut faces, ensuring consistent torque-tension relationships.
- Fluid Sealing (Gaskets): Solid metal washers act as flat seals or gaskets, creating leak-proof joints in piping, water tanks, and hydraulic systems.
- Vibration Locking: Helical spring lock washers and serrated disc washers apply continuous tension to prevent joint backing-off under dynamic fatigue.
- Thermal & Elastic Compensation: Belleville disc springs maintain bolt preload despite thermal expansion and structural relaxation.
Comprehensive Washer Types & Classifications
Intact360 manufactures a complete catalog of industrial washers designed in strict accordance with international standards including DIN 125, ISO 7089, DIN 127, and DIN 2093.

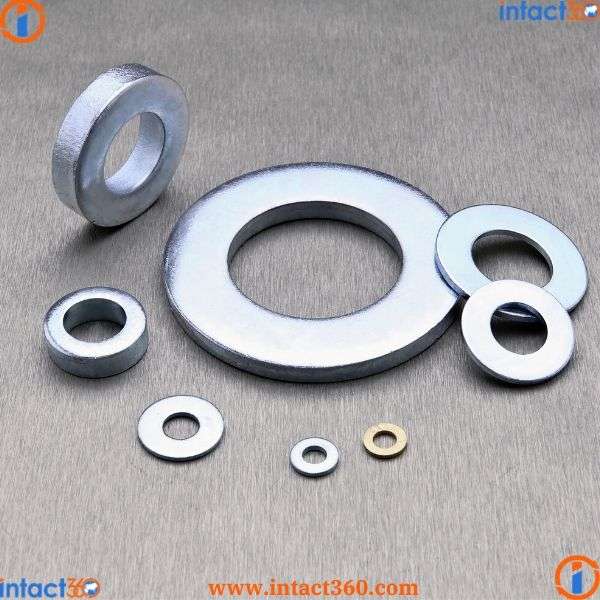

1. Plain Washers & Flat Gaskets
Available in plain and threaded-mating varieties, flat circular or square washers provide a smooth bearing area that distributes pressure evenly across joined plates. Solid metal washers also serve as flat gaskets and seals in fluid transfer systems to prevent line leaks.
2. Spring Washers & Belleville Disc Springs (DIN 2093)
Conical Belleville disc spring washers and dome spring washers deliver high spring energy in compact spaces. Specified under DIN 2093, disc springs absorb heavy axial shock loads and compensate for bolt stretch caused by thermal fluctuations in power plants and refineries.

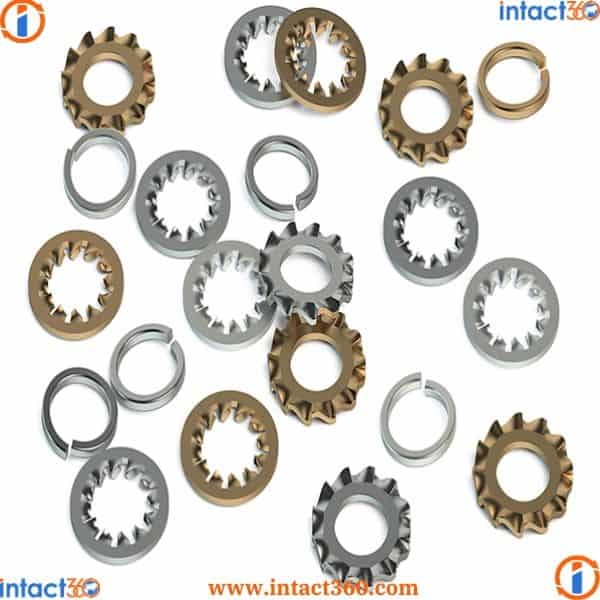

3. Split Lock & Helical Bearing Washers
Helical split lock washers feature split ends that bite into mating bolt heads and nut faces, exerting continuous spring force to resist dynamic rotational loosening caused by severe machine vibration.
Metallurgical Material Selection & Engineering Properties
As a specialized industrial washers manufacturer, Intact360 stamps and machines washers from certified raw materials to match specific operational environments:
1. Stainless Steel Washers (SS 304, SS 316, SS 316L)
Stainless steel washers offer high hardness, superior durability, and long-term corrosion resistance in high-temperature chemical plants, oil refineries, and automotive exhaust systems. Their passive chromium oxide film withstands corrosive fluids and harsh outdoor weathering.
2. Carbon Steel & Mild Steel (MS) Washers
Incredibly strong and durable, carbon steel washers handle large mechanical forces in aerospace, oil and gas production, and structural engineering. While carbon steel provides high proof loads, protective platings are recommended for moisture-exposed environments to prevent rusting.
3. Aluminum & Aluminum Alloy Washers
Lightweight and easy to work with, aluminum washers exhibit natural corrosion resistance in high-pressure steam, water systems, HVAC equipment, and heating systems. They withstand external wind/water pressures while providing lightweight structural support.
4. Brass & Bronze Washers
Brass (copper-zinc alloy) washers provide excellent tarnish resistance and low magnetic permeability for electrical and plumbing fixtures. Bronze (copper-tin alloy) washers deliver extreme saltwater corrosion resistance, making them ideal for marine hardware and ocean coastlines.
Technical Specifications & Coating Standards
| Washer Specification | Standard / Norm | Material Options | Plating & Surface Finishes |
|---|---|---|---|
| Plain Flat Washers | DIN 125 / ISO 7089 / ASME B18.22.1 | Stainless Steel 304/316, Carbon Steel, MS | Hot Dip Galvanized (HDG), Zinc Plated |
| Helical Spring Lock Washers | DIN 127 / ASME B18.21.1 | Spring Steel, SS 304/316 | Black Oxide, Phosphating, Cadmium Plated |
| Belleville Disc Springs | DIN 2093 / Group 1, 2, 3 | 50CrV4 / 51CrV4 Spring Steel | Molykote Dry Lubricant, Phosphated |
| Corrosion-Resistant Washers | ISO 7093 / DIN 9021 (Fender) | Aluminum, Brass, Phosphor Bronze | PTFE Coating, Teflon, Xylan Coating |
Intact360 applies advanced protective coatings to suit specific operating environments, including Hot Dip Galvanizing (HDG) for outdoor exposure, Zinc Electroplating, Phosphating, Black Oxide, Cadmium, Nickel, Molykote, Fluoropolymer, Fluorocarbon, and PTFE/Teflon/Xylan dry film barrier coatings.
Order High Quality Industrial Washers Direct from Factory
Get factory-direct pricing for stainless steel plain washers, DIN 2093 disc springs, split lock washers, and custom stamped metal gaskets with complete material test certificates.
Industrial Metal Washers Technical FAQ
Why choose Intact360 as your industrial washers manufacturer?
What is the primary mechanical function of an industrial washer?
What raw materials are used to produce Intact360 metal washers?
What are Belleville disc spring washers used for?
Which protective anti-corrosion coatings are available for steel washers?
Can Intact360 supply custom dimensioned metal washers and solid seals?
Get Certified Industrial Washers Delivered Worldwide
Send your project bill of materials, washer dimensions, or technical drawings directly to our sales specialists for an immediate quote.
